Curve 9

curve9.xml

Concept

This is a delayed version of Curve 3.

It uses the clipper of the "INPUT" to define the range across which the curve is developed.

In this case, the upper clipper of the "INPUT" is set at 100% and the lower clipper of the "INPUT" is set at 50%. The clipper window is used to drive the "Range Input" importance. The modified value of the "Range Input" is used to drive the "OUTPUT".

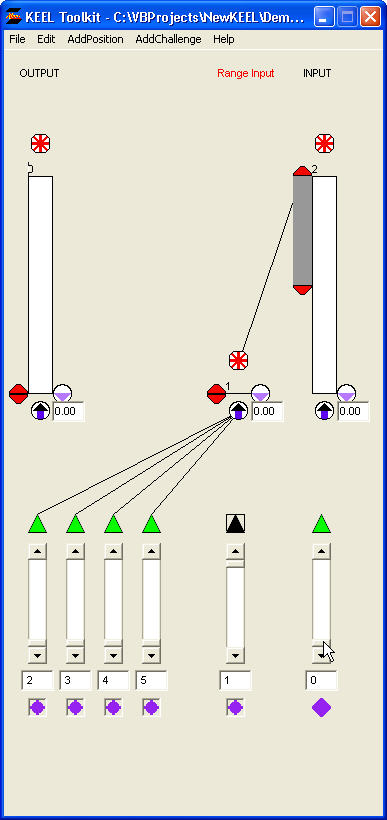

Design

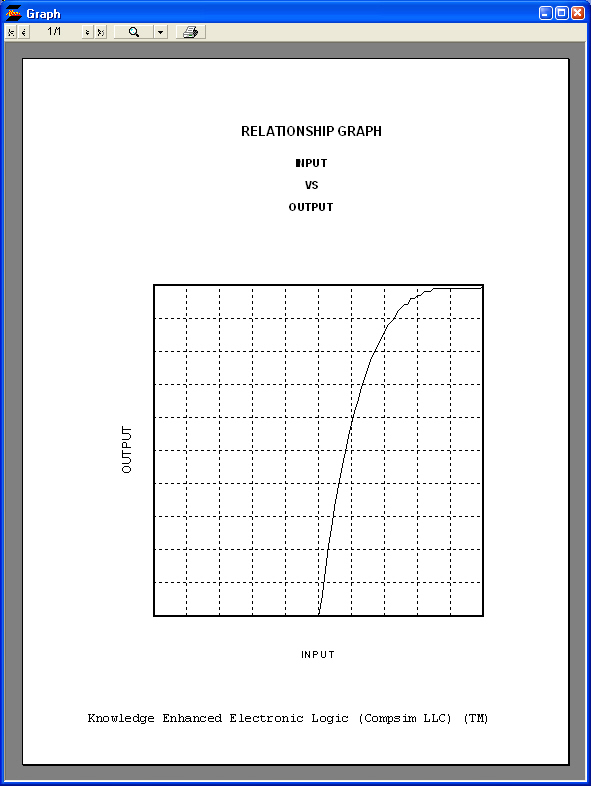

Output

Output
