curve11.xml
This is a delayed version of Curve 5.

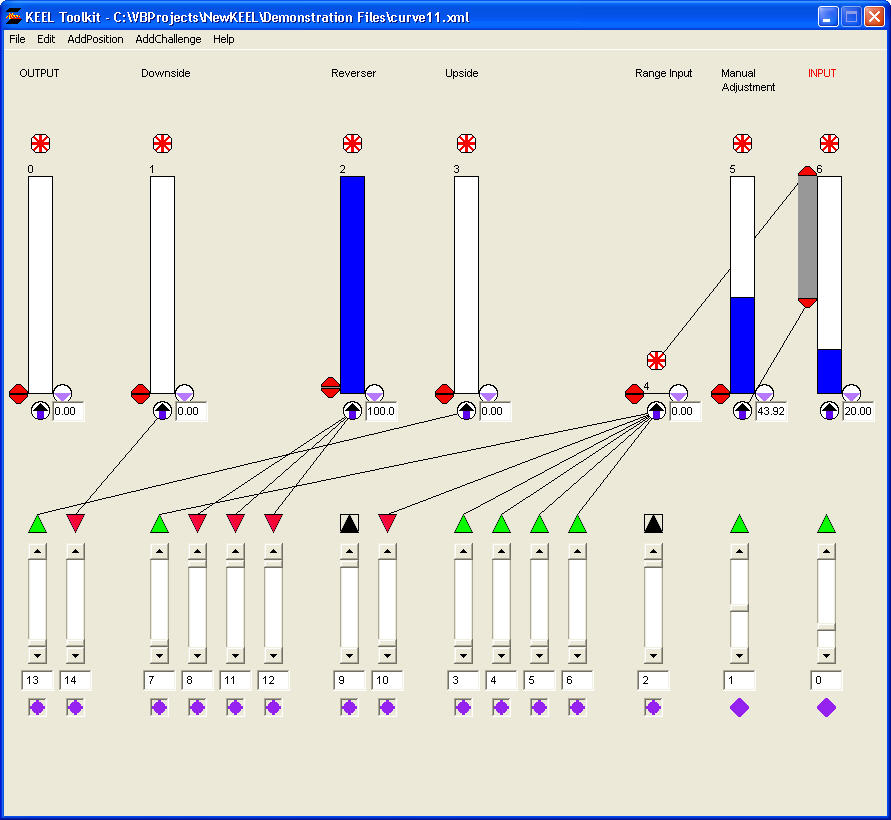

The clipper of the "INPUT" is used to drive the "Range Input" importance and therefore delays the curve until the lower clipper of the "INPUT" is reached. The curve is completed when the upper clipper value of the "INPUT" position is reached.
This curve has an additional input ("MANUAL INPUT") that allows the lower clipper of the "INPUT" to be adjusted.

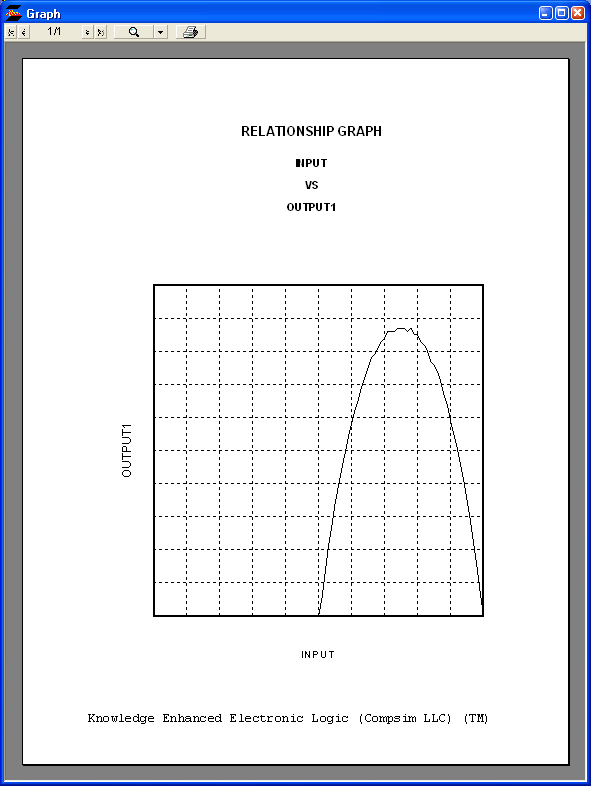

The top graph shows the result of setting the "MANUAL INPUT" to 50% (thus setting the lower clipper to 50% with the upper clipper fixed at 100%).

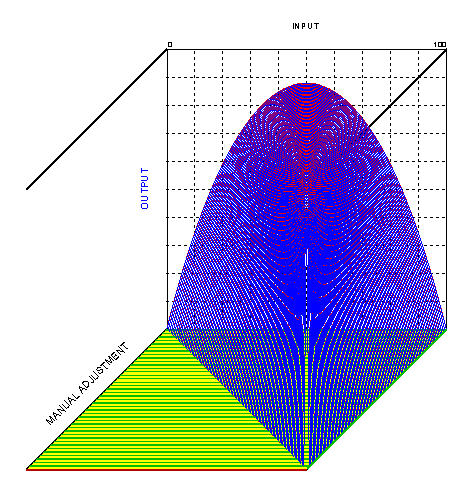

The second graph shows the result of scanning the "MANUAL INPUT" from 0 to 100%.
